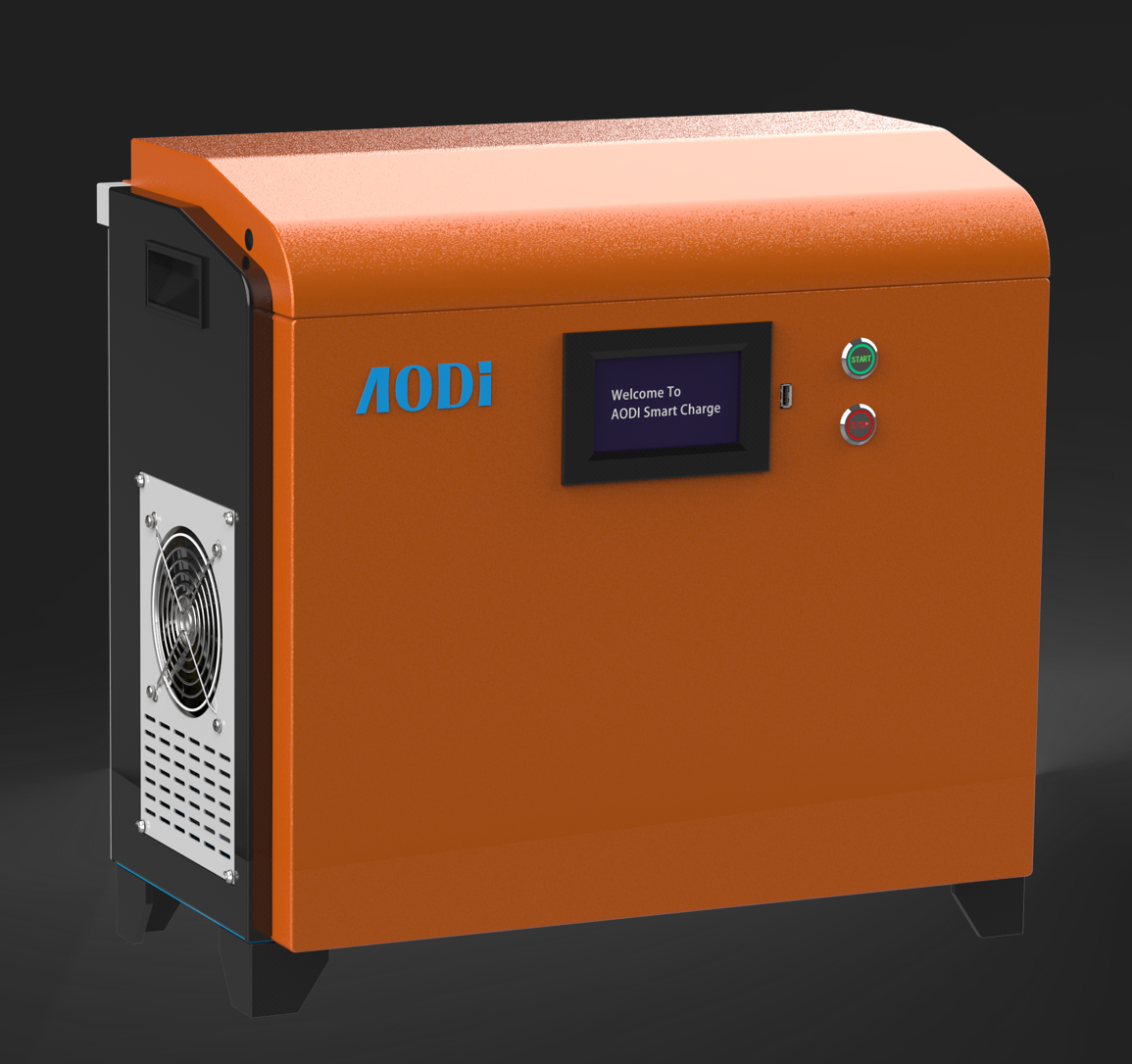

QR Series-Forklifts Modular Charger

Short Description:

Nomail Output Voltage：48Vdc,80Vdc

Output Voltage Range: 20-63Vdc(48Vdc nominal); 30-110Vdc(80Vdc nominal)

Main Models:
48Vdc/150Amps, 80Vdc/100Amps,
80Vdc/200Amps,80Vdc/400Amps

Max Power: 32kW

Output Current:150A (x1 module),400A(x2 modules)

Dimesions:

500*467*242mm

Applications: Material handling equipment（Forklifts,AGVs,Lifts trucks）

Input Voltage: 380VAC,480VAC ±15% 3 phase;

Input Voltage Range:260-530VAC

Battery: Lead Acid(Flooded,AGM/GEL),Lithium-Ion;

User Interface: LED/Keypad

Can Protocol: Can Bus Communication for Lithium batteries;Modular fail-proof design;

Customized charging profiles;

Various configurations available

Active PFC;

Complies with California Energy Commission (CEC) appliance efficiency standards,ETL,CEC,FCC;

Reach us for the more details.

Product Detail:

High-frequency technology has already become a standard requirement for battery charging in the

Motive Power Industry, the new range of QF series modular chargers raise the bar to a new level.

It is an innovative line of high frequency battery charger from AODI with modular power design.

It can be run single phase and 3 phase with 92% efficiency.

Modular fail-proof design

Customized charging profiles;

Various configurations available

Active PFC;

Complies with California Energy Commission (CEC) appliance efficiency standards,ETL,CEC,FCC;
