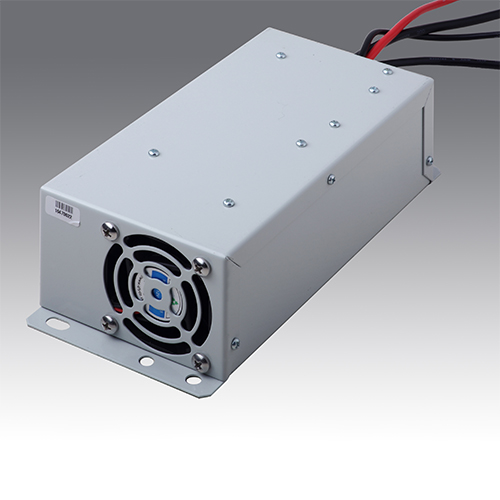

China QH Series Scissor Lift Charger - High Efficiency Onboard Charger from Reliable Suppliers & Factory
Product Features
Product Description
- Efficient Design: 95% energy efficiency
- Optimization: Precisely charge to balance the charge time and prolong the batteries life.
- Air cooling: Aluminum enclosure, excellent cooling, durable, lower cost.
- Electronic Protection: Reverse polarity protection, short circuit protection and overheat protection with Auto-reset.
- Tailored OEMs: Tailored charging profiles and cablings
- Smart, Compact: Well used for all kinds of utility vehicles. Specialized for Aerial Work platforms (Haulotte, Upright, Snorkel etc).
Appearance
- Product size: 234*105*66mm
- Product weight: 2.2kg
Optional Features
- Remote LED Lights: Easy to monitor the charging status
- Lockout (Interlock): The charger provided a series of relay as the lock signal which is normally closed. If charger's not energized, the relay's on, and once the charger connected to AC power, it will immediately disconnect.
- Cutout: Select between flooded or AGM battery types.
Product Parameter
| Input Voltage AC | 230VAC, 50-60HZ |
| Working Voltage AC | 185-265VAC, 50/60HZ |
| Max Power | 1000W |
| Efficiency | 95% Approx |
| Maximum Interlock Current | 0.5A |
| Battery Type | Lead acid & Lithium-Ion |
| Battery Chemistries | Wet, Gel/AGM, Lithium-Ion |
| Reverse Polarity | Electronic protection with auto-reset |
| Short Circuit | Electronic current limit |
| Operating Temperature | -40℃~+65℃, Derated at >40℃ |
| Storage Temperature | -40℃~+85℃ |
| AC Input Connector | IEC320/C14 (requires country-specific cord) |
| DC Output Connector | M6 threaded fasteners for ring terminals |
| Cooling | Air cooling |
| Mounting Holes | Allows for safe installation on shelf, wall or bulkhead |
| Relative humidity | 90% |
| Enclosure | IP54 |
Frequently Asked Questions
What is the energy efficiency rating of this charger?
This charger features an highly efficient design with approximately 95% energy efficiency, helping to reduce power consumption during the charging process.
Which battery types and chemistries are supported?
It supports Lead-acid and Lithium-Ion battery types, specifically compatible with Wet, Gel/AGM, and Lithium-Ion battery chemistries.
What safety protections does the charger offer?
The charger is built with robust electronic protection, including reverse polarity protection (with auto-reset), short circuit protection (electronic current limit), and overheat protection.
Can this charger be used on Aerial Work Platforms?
Yes, it is specialized for Aerial Work Platforms (such as Haulotte, Upright, Snorkel, etc.) and is well-suited for all kinds of utility vehicles.
What are the physical dimensions and weight of the charger?
The product dimensions are 234*105*66mm and it weighs approximately 2.2kg, making it a smart and compact charging solution.
What is the environmental protection rating of the enclosure?
The charger features an IP54 rated enclosure, which provides protection against dust ingress and splashing water, combined with a durable aluminum enclosure for efficient air cooling.
