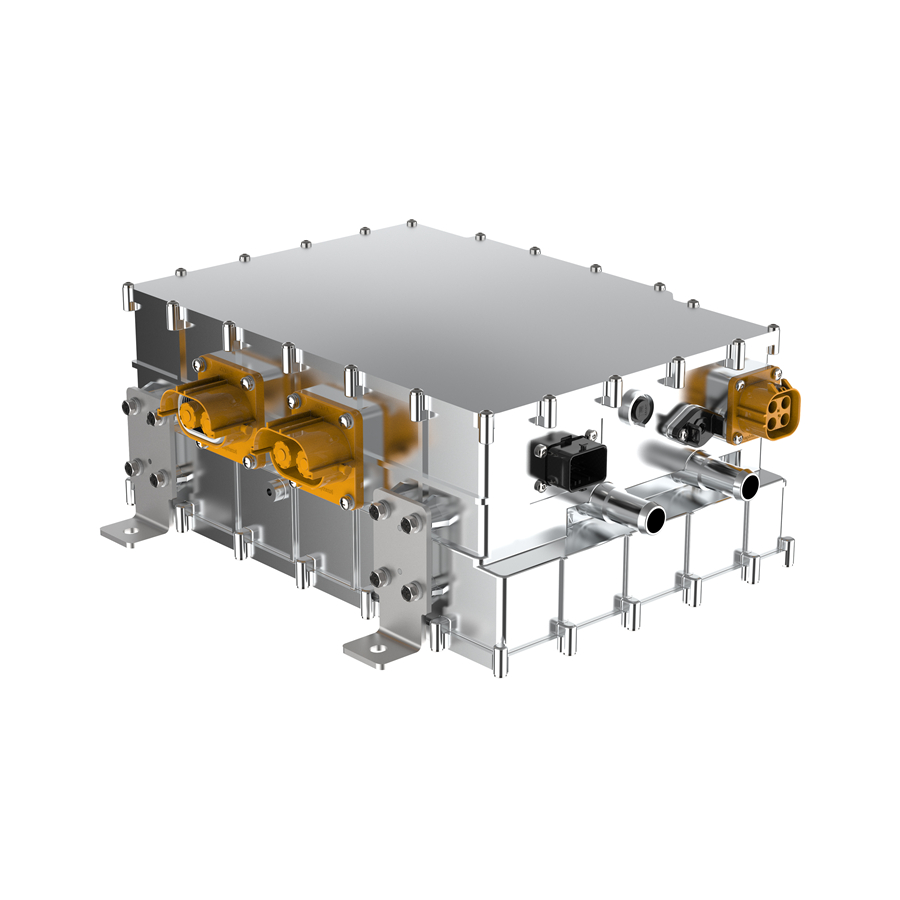

11KW Bi-OBC + 2.5KW DC/DC + PDU Power Solutions from China Suppliers and Factory
Product Features
Key Features
- High Efficiency: OBC module efficiency: 94%, DC-DC module efficiency: 93%
- Compact & Lightweight: Dimensions: 400mm x 255mm x 168mm (excluding connectors), Weight: 25KG
- Water-Cooled Design: Ensures effective heat dissipation for stable operation.
- Fully protected against dust and water, ensuring reliable operation in harsh environments.
Battery & Charging Performance
- Wide Input Voltage Range:
- Three-phase input: 360-440Vac
- Single-phase input: 200-260Vac
- Output Voltage & Current (Charging Mode - OBC):
- Output voltage: 310-400VDC
- Output current: 0-30A
- Inverter Mode:
- Output voltage (DC): 13.8VDC
- Output current (DC): 0-145A
- Output voltage (AC): Three-phase 360-440Vac or single-phase 200-260Vac
- Inverter power: 3.6KW (single-phase), 10KW (three-phase)
Smart Functions
- Protection with Automatic Recovery: Includes protection against over-voltage, over-current, short-circuit, and over-temperature.
- Automatic recovery to minimize downtime.
- MTBF (Mean Time Between Failures): 300,000 hours, ensuring high reliability and longevity.
- Communication & Integration:
- Versatile Working Modes: Supports both charging (OBC) and discharge (Inverter) modes, enabling flexible integration with various energy systems.
- Customizable PDU Power: Standard PDU power: 100KW (customizable to meet specific requirements).
Design & Flexibility
- Facilitates installation in confined spaces.
- Offers flexibility with various output voltage options (310-400VDC for charging, 13.8VDC for discharge).
Protection & Safety
- Over-voltage protection (input and output)
- Over-current protection (input and output)
- Short-circuit protection
- Over-temperature protection with auto-recovery
- High voltage DC reverse protection for OBC and DC-DC modules
Applications
- Various new energy vehicles, Industrial control products
Frequently Asked Questions
What is the efficiency of the OBC and DC-DC modules?
The OBC module features an efficiency of 94%, while the DC-DC module achieves an efficiency of 93%.
What are the physical dimensions and weight of this product?
The dimensions are 400mm x 255mm x 168mm (excluding connectors), and the unit weighs 25KG.
What input voltage ranges does this system support?
It supports a wide input voltage range: three-phase input of 360-440Vac and single-phase input of 200-260Vac.
What is the reliability rating (MTBF) of this unit?
The Mean Time Between Failures (MTBF) is 300,000 hours, ensuring high reliability and longevity.
What protection mechanisms are integrated into this system?
It features comprehensive protection against over-voltage, over-current, short-circuit, and over-temperature (with auto-recovery), alongside high voltage DC reverse protection for the OBC and DC-DC modules.
Where can this product be applied?
It is designed for use in various new energy vehicles and industrial control products.
